Brand Name : GD laser
Certification : CE
Place of Origin : SHENZHEN, CHINA
MOQ : 1 set
Price : Negotiate price
Payment Terms : D/P, L/C
Supply Ability : 100 sets/month
Delivery Time : 10 work days
Packaging Details : Wooden case packing, 1 set/box
Laser power : 500W-6000W
Electricity demand : 380V
Cooling method : Water cooling
X/Y axis fast moving speed : 100m/min
X/Y positioning accuracy : ±0.03mm
X/Y axis repeatability : ±0.05mm
4015 single table fiber laser cutting machine
1. Product introduction
The 4015 single table optical fiber laser cutting machine is a Dapeng laser integrated beam and beam integrated mobile structure, bilateral gear rack synchronous drive, flight light path. The optimized CNC system for laser cutting combined with the configuration of an oversized work table has enhanced the humanized operation and the movement is stable and reliable.
2. technical parameter
Model | DPE-F4015-(500W-6000W) |
Laser source type | Fiber source |
Laser wavelength | 1070nm |
Laser power | 500W-6000W |
Cutting range | 4000mmx1500mm |
Minimum line width | < 0.1mm |
Transfer method | Precision rack dual drive |
Cutting speed and thickness | Depending on the specific material |
Optimal operating environment | 0-40°C Temperature 0-40°C |
Electricity demand | 380V/50HZ |
Cooling method |
Water cooling |
Continuous operating time | 24 hours |
Weight | 5200kg |
Dimensions | About 4700mm x2700mm x2000mm |
Maximum operating speed | <120m/min |
Maximum acceleration | 1.2G |
X/Y positioning accuracy | 0.03mm |
3. Application display
![]() |

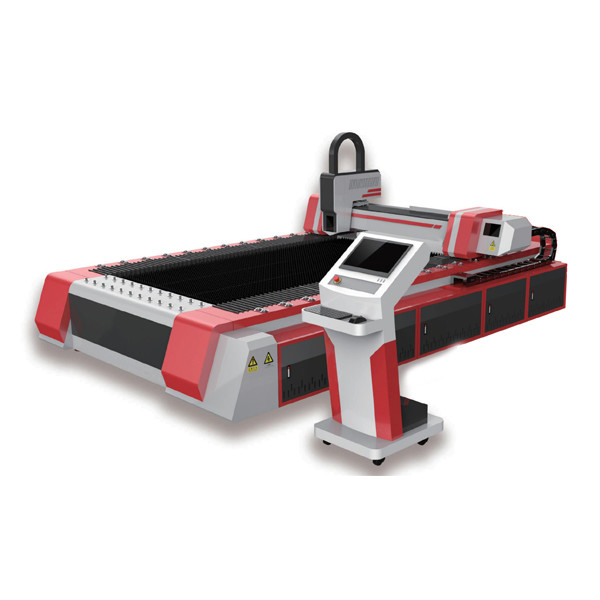

4015 Single Table Fiber Laser Cutting Machine 500W-1000W Power Images |
